Chinese factory OEM/ODM Single- phase series home energy storage power station

Short Description:

A new photovoltaic energy storage system based on LiFePO4 battery, integrated battery management system (BMS) and inverter system is widely used in household photovoltaic energy storage, emergency disaster relief power supply, backup power supply of data room, etc.


Product Detail

Product Tags

LiFePO4 cells, More Safer

Used Lithium iron phosphate (LiFePO4) cells, and the puncture test is not burning, Extrusion deformation without explosion, working temperature - 10 ~ 40℃

System Application

Charging the system through solar panels or staggered peak power consumption, which can be used in case of power failure or peak power consumption. It is an economic and environmental protection power supply system for families or commercial places.

Bidirectional Inverter Technology High Power Charge and Discharge

Support up to 5000W solar energy and daily grid charging

Support up to 10kW AC output

Support Multiple Modules Series Connection Up to 24 kWh

A single battery module is 4KWh, which supports multi-level parallel connection, and the battery module can be selected as needed. The maximum number of battery modules in a single cabinet is 6 groups, with a total of 24kWh

LiFePO4 Battery Smart "BMS" Multi Protection Design

The battery module adopts single 40Ah LiFePO4 battery without explosion and fire

Advanced intelligent BMS provides multiple battery protection such as over temperature, over voltage, over current and overcharge

Home Application Scenario

Usually, the cost of electricity can be reduced through this clean energy system, In case of power failure or emergency, Independent and controllable renewable power supply

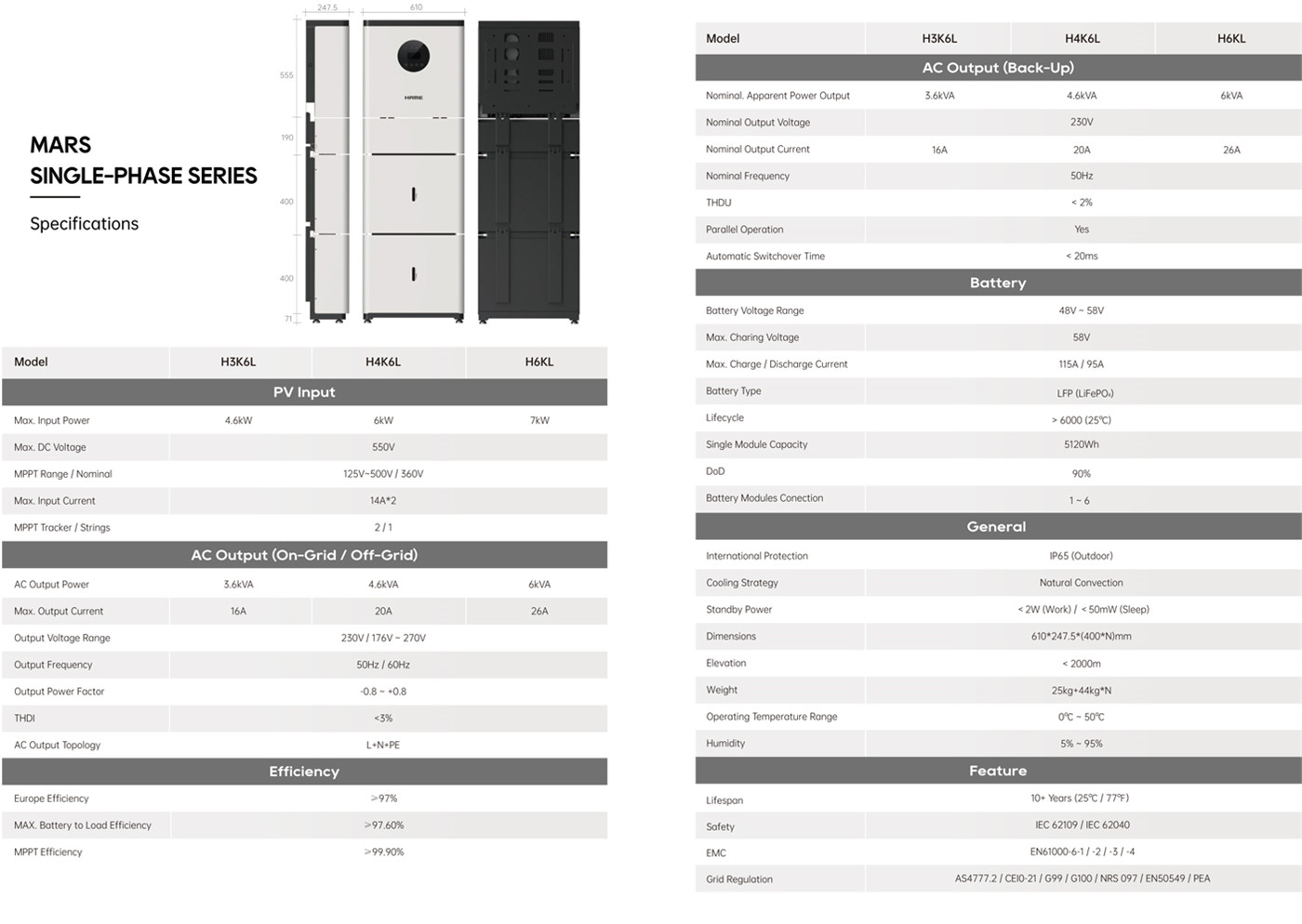

SPEC

Chinese-factory-OEMODM-Single-phase-series-home-energy-storage-power-station2
